1. This product is used for terminal power distribution system of AC, rated frequency 50Hz, rated voltage 380/220V and rated current not exceeding 100A;

2. The box shell can be made of carbon steel spraying, stainless steel or polycarbonate production, protection grade IP30;

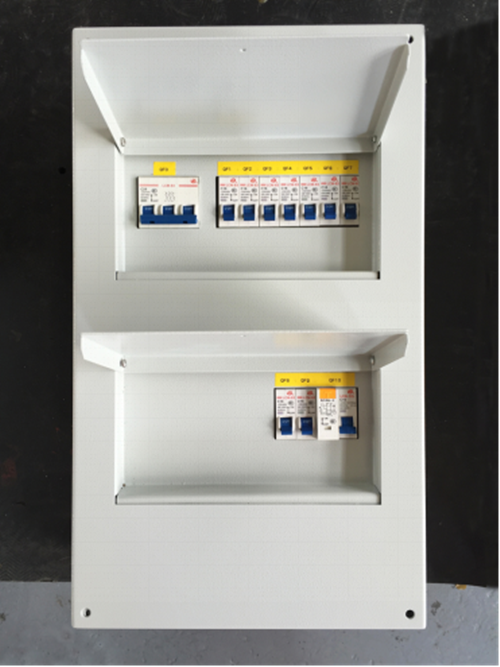

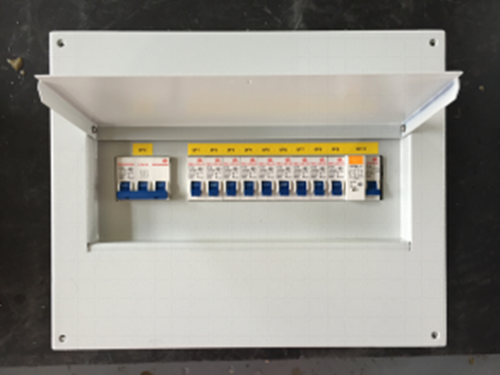

3. It is provided with metal or transparent protective cover for the clear display of the working state of the switch electrical appliances;

4. It is with modular design concept. All electrical components in the distribution box are installed by rails with 9mm module as width of the component. This arrangement is compact and reasonable, and the installation, disassembly, replacement and maintenance are very convenient;

5. According to the user need, it can provide different manufacturers of miniature circuit breakers and surge protective device, miniature relay and other modular components which make the box beautiful, luxurious, high strength, impact resistance and good safety performance;

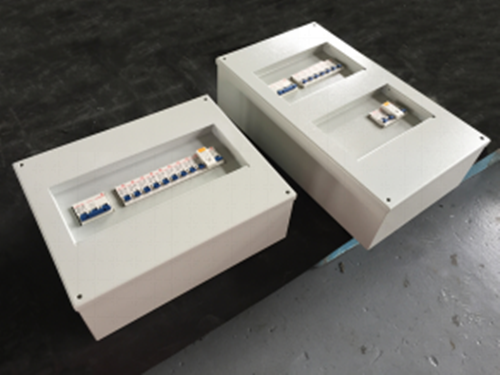

6. The installation method is flexible: wall mounted type and concealed hanging wall type.

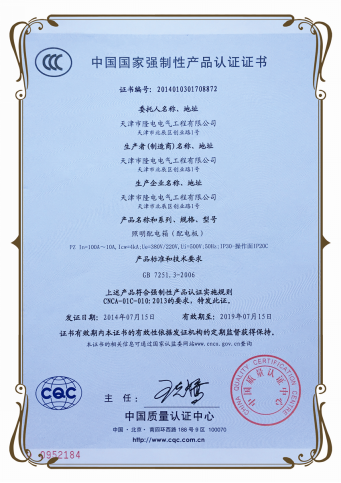

中國國家強制性產(chǎn)品認證證書

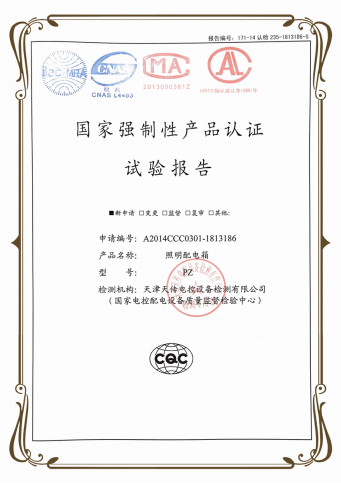

國家強制性產(chǎn)品認證試驗報告
