<ul id="c2oyq"></ul> 在本期的大講堂中，我們將分析講解“高低壓配電”系列中的“GGD交流低壓配電柜”。那么它的產品含義是什么，又有什么樣的電氣特點呢？就讓我們進入本期專題...
GGD型交流低壓配電柜適用于發電廠、變電所
產品型號GGD的含義：
G：交流低壓配電柜
G：電器元件固定安裝
、固定接線D：電力用柜

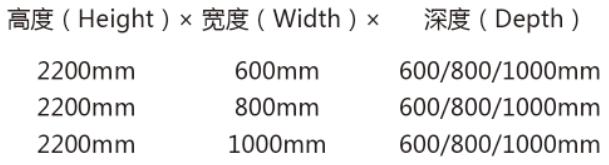

柜體尺寸：

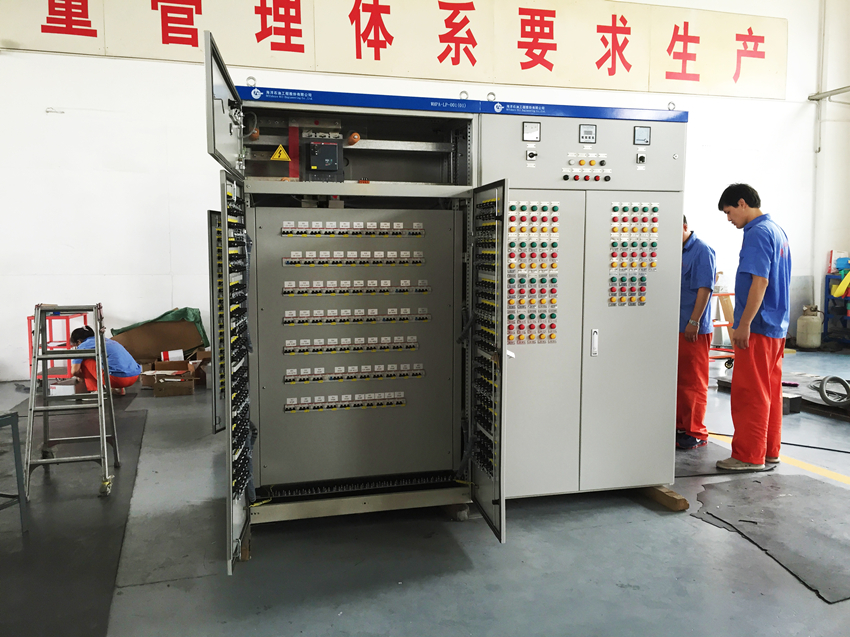

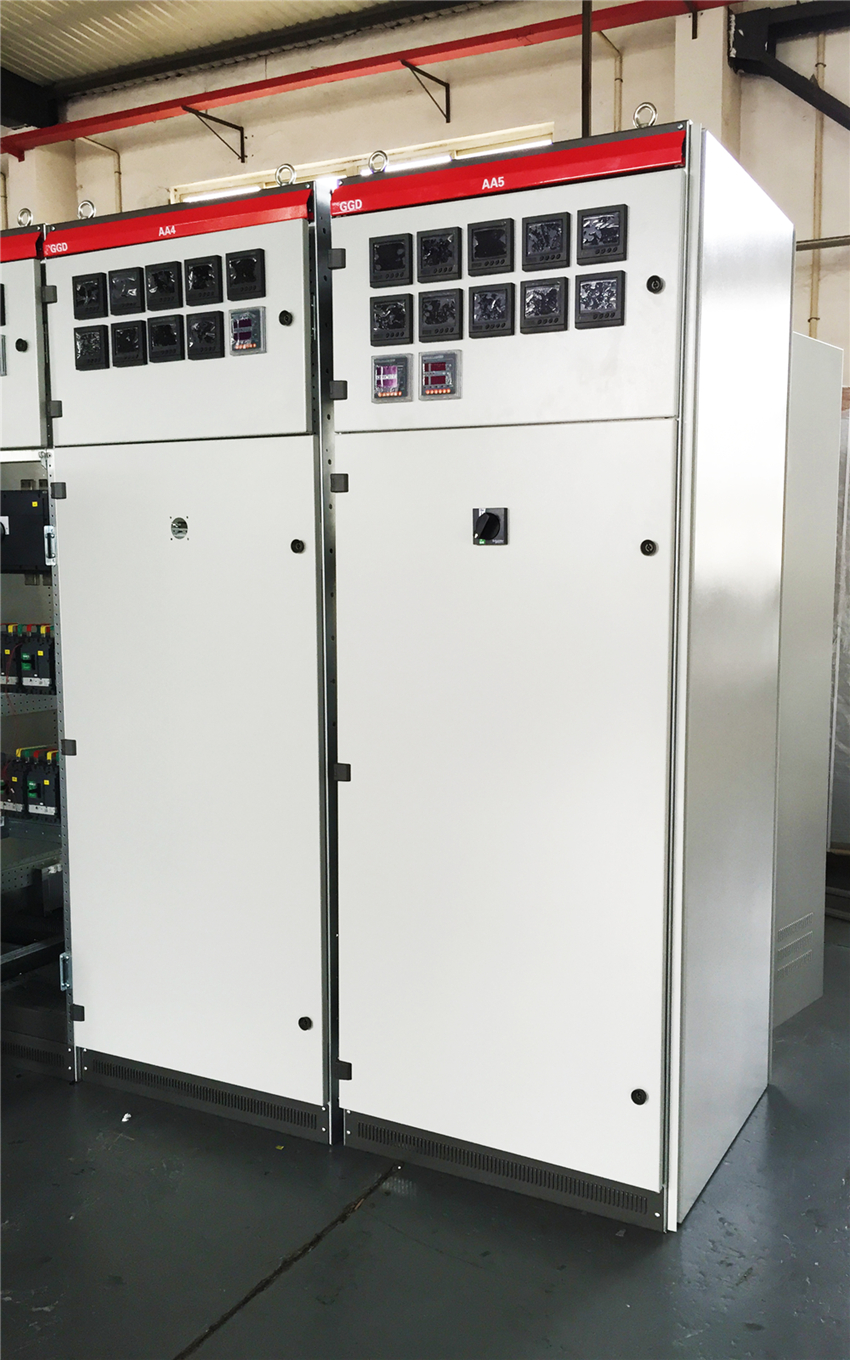

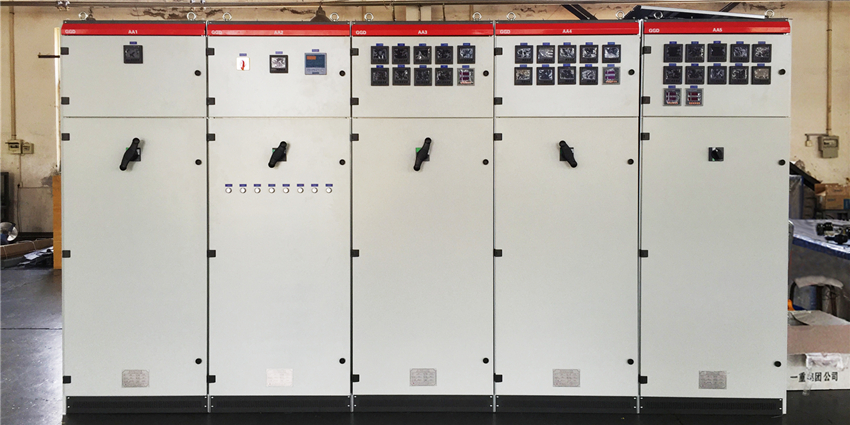

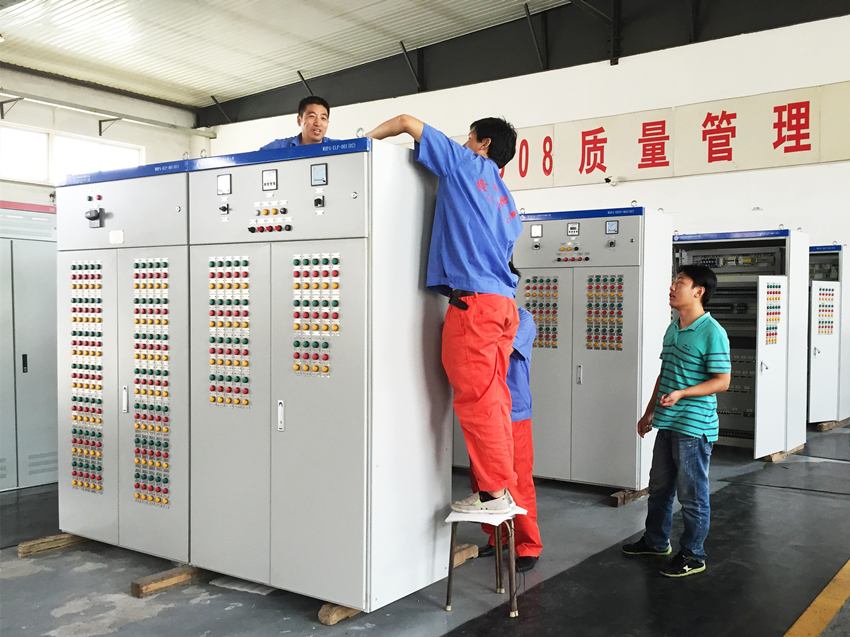

隆電電氣GGD合同展示

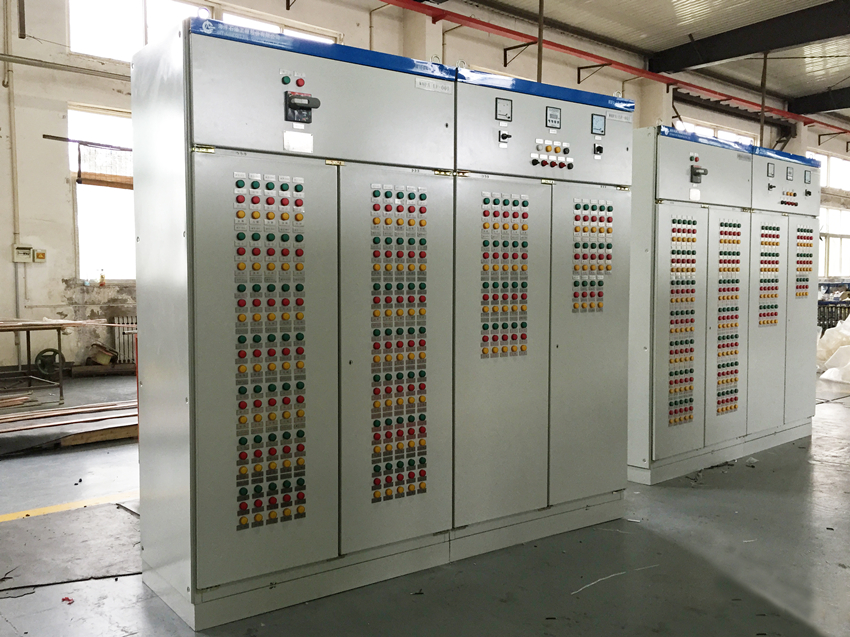

合同號：LD-C-549

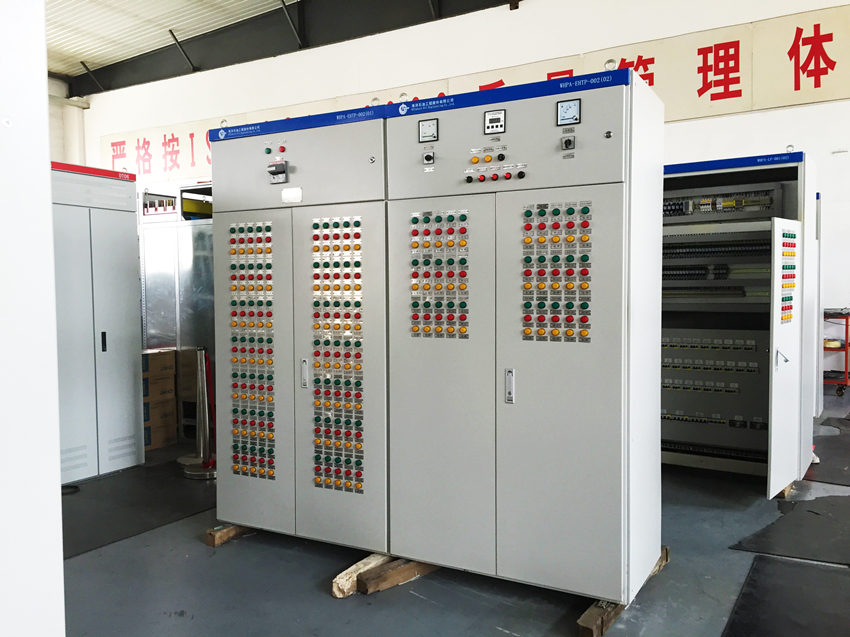

合同號：LD-W-026

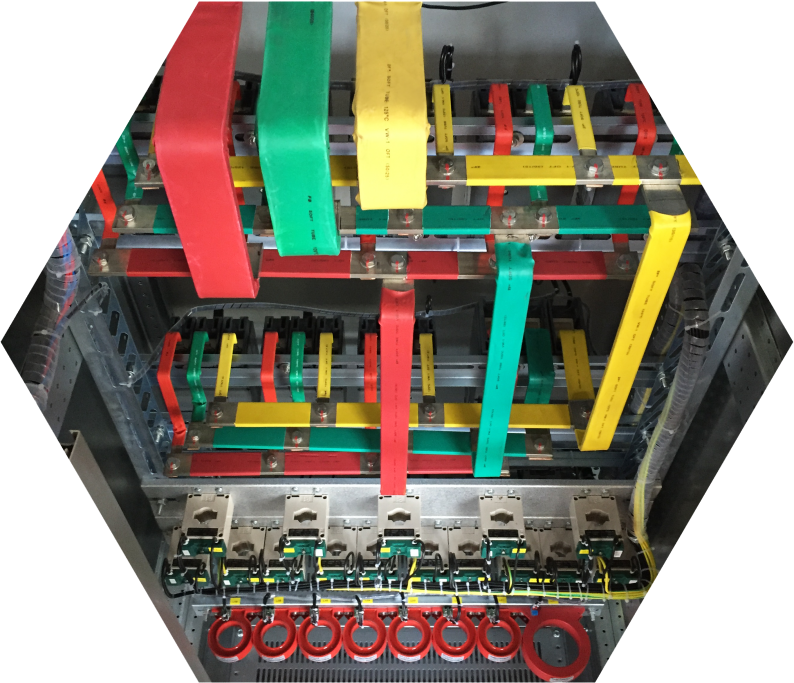

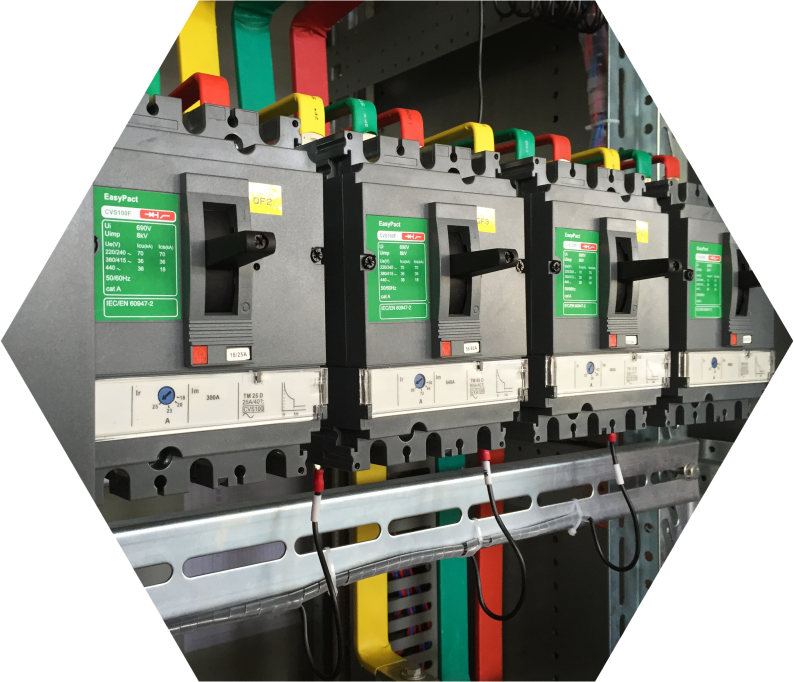

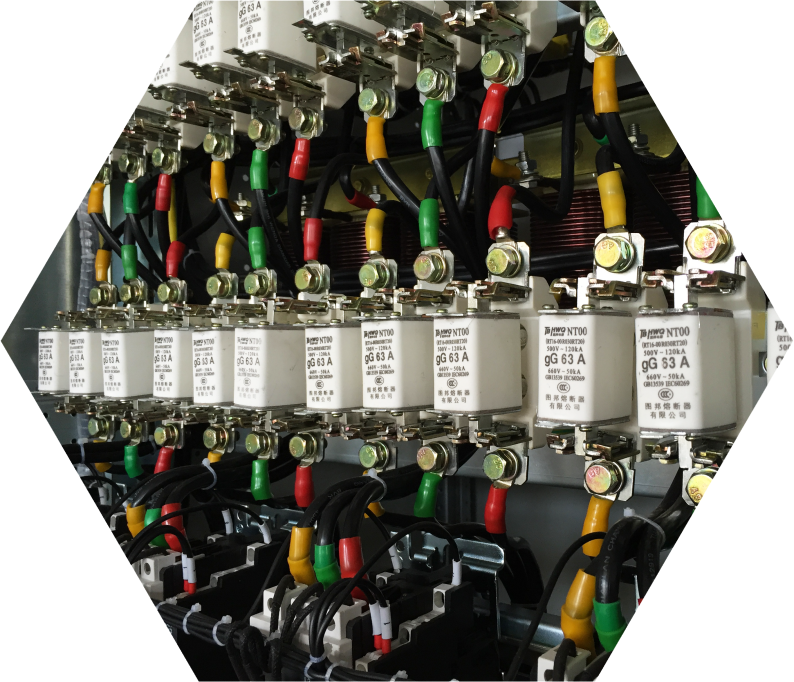

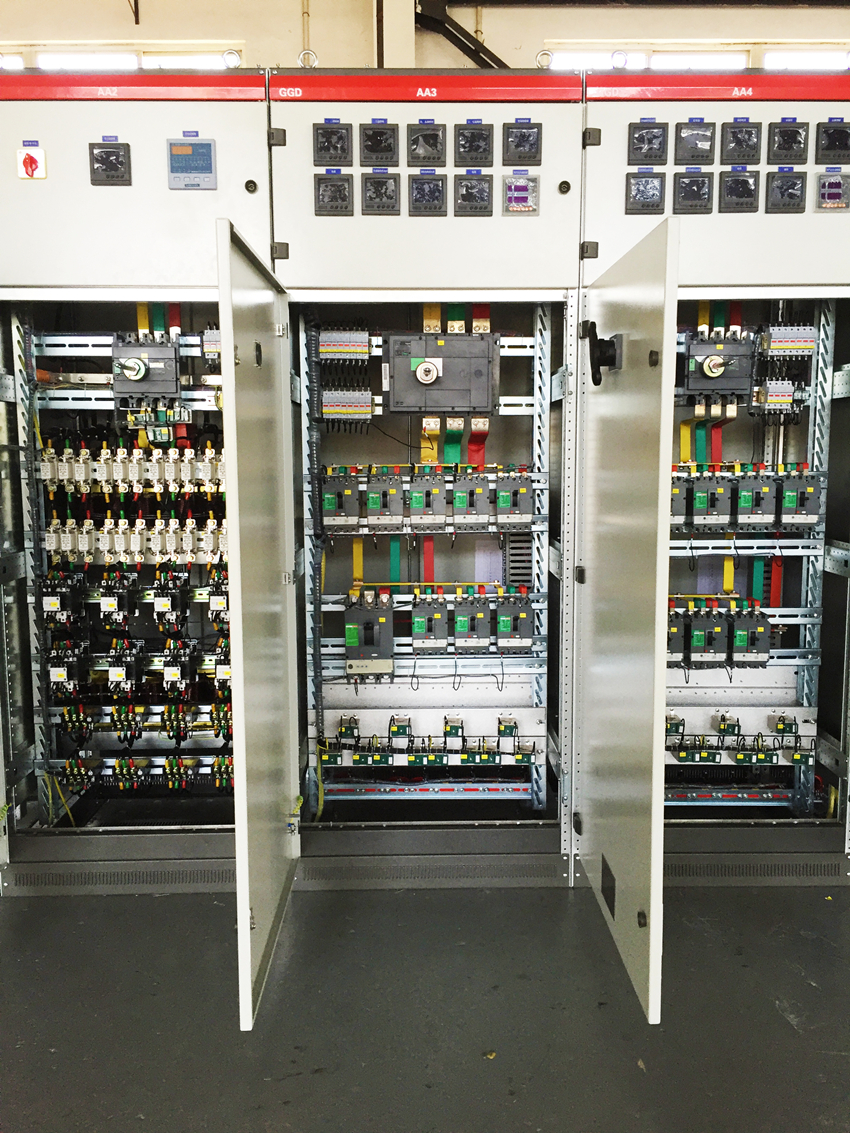

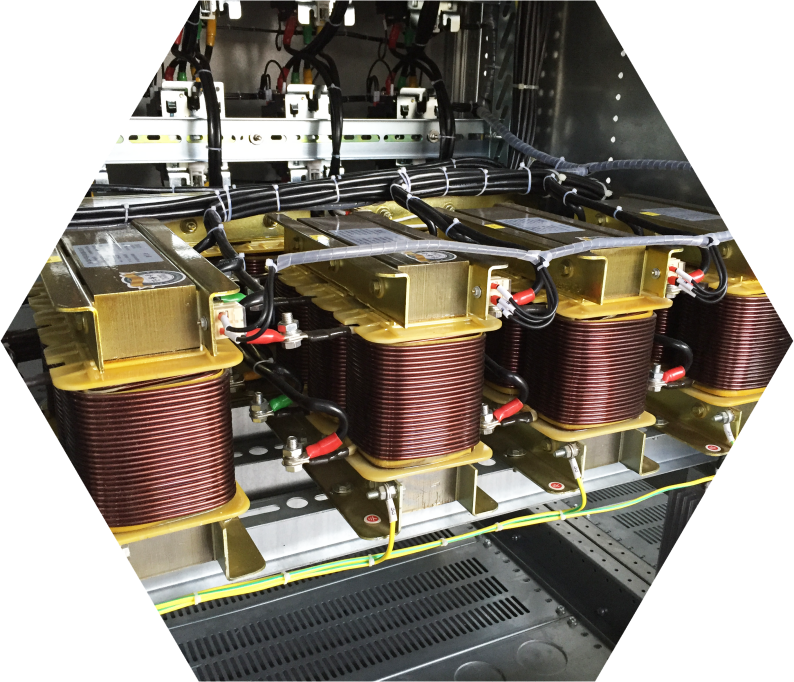

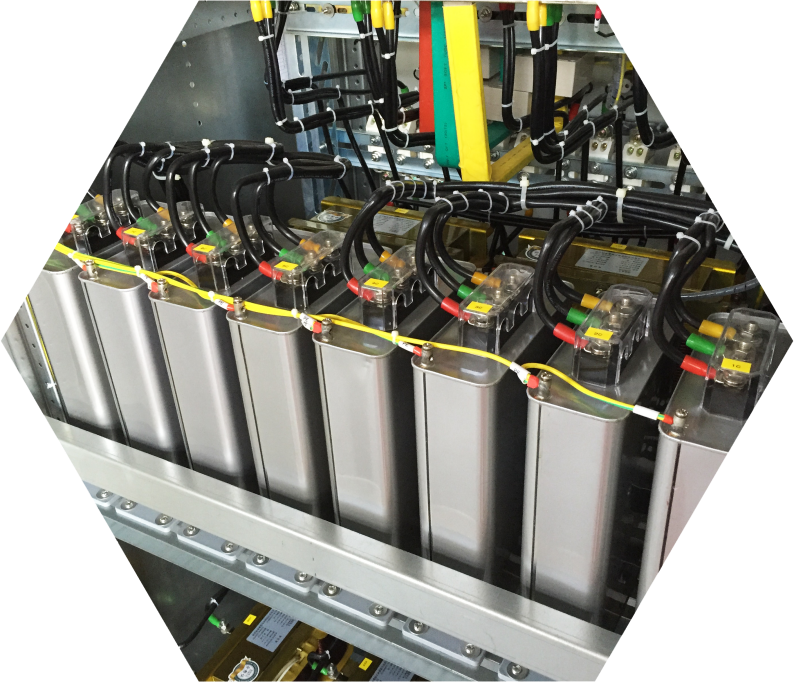

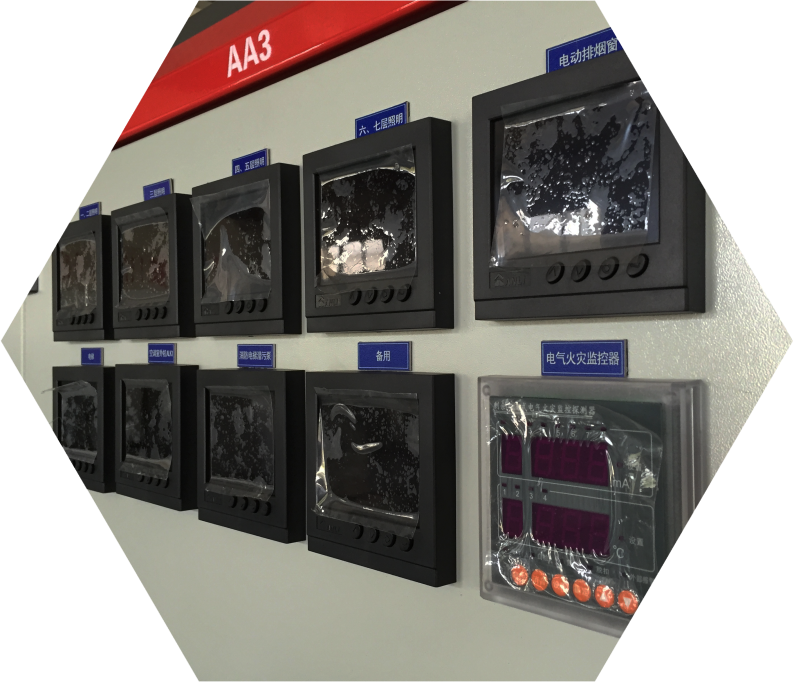

細節實拍：
一.產品簡介
Brief introduction :
GGD交流低壓配電柜用于發電廠
、變電站、廠礦企業等電力用戶。產品符合GB7251.1-2013及歐洲標準EN61493-1、2等標準。產品作為交流50-60HzGGD AC low voltage distribution cabinet is used in power plant, substation, industrial enterprises and other power users. This product complys with GB7251.1-2013, European standard EN61493-1, 2 and other standards. As a distribution equipment of AC 50-60Hz, rated working voltage 380V (660V), rated working current to 630-1500A, GGD is used for power conversion, distribution and control in power, lighting and power distribution system.
二. 主要性能與特點
Main performance and features :
1. 按用途分為：受電柜、母線聯絡柜
2. 柜架用8MF冷彎型鋼材局部焊接拼裝而成
3. 柜體上下兩端有不同數量的散熱孔
4. 采用高阻燃ZMJ型母線夾
5. 箱體頂部與底部可配置活板，便于走線
6. 適用性強
7. 具有良好的安裝靈活性，不會因?yàn)樵骷母男突蚋露斐砂惭b困擾
8. 采用黃金分割比例的方法設計柜體和各部分的分割尺寸
，美觀大方。9. 產品具有動熱穩定性好，結構牢固
1. According to the use, GGD is divided into: receiving electric cabinet, bus contact cabinet, feeder cabinet, electric motor control cabinet, reactive power compensation cabinet, lighting power distribution cabinet.
2. The cabinet frame is assembled with 8MF cold formed steel plate with local welding. Installation holes of
module E=20mm and module E=100mm are arranged on the frame to improve the assembly universality.
3. Different numbers of ventilation holes are in the upper and lower of the cabinet, convenient for ventilation and heat radiation.
4. With high mechanical strength and high insulation, high flame retardant ZMJ type bus clamps are used.
5. Removable steel plate is configured on the top and bottom of the cabinet for wiring easily.
6. Strong applicability, wide selection of main components, most of domestic and imported brands are interchangeable.
7. Installation is flexibile and the modified or updated components would not bring trouble to the installaiton. Also, modular design is adopted for easy design and installtion.
8. The cabinet and all parts are designed by the method of golden section, beautiful in appearance.
9. The product has the characteristics of good thermal stability, strong and reasonable structure, practical electrical scheme, combined use by series and high performance-price ratio etc..

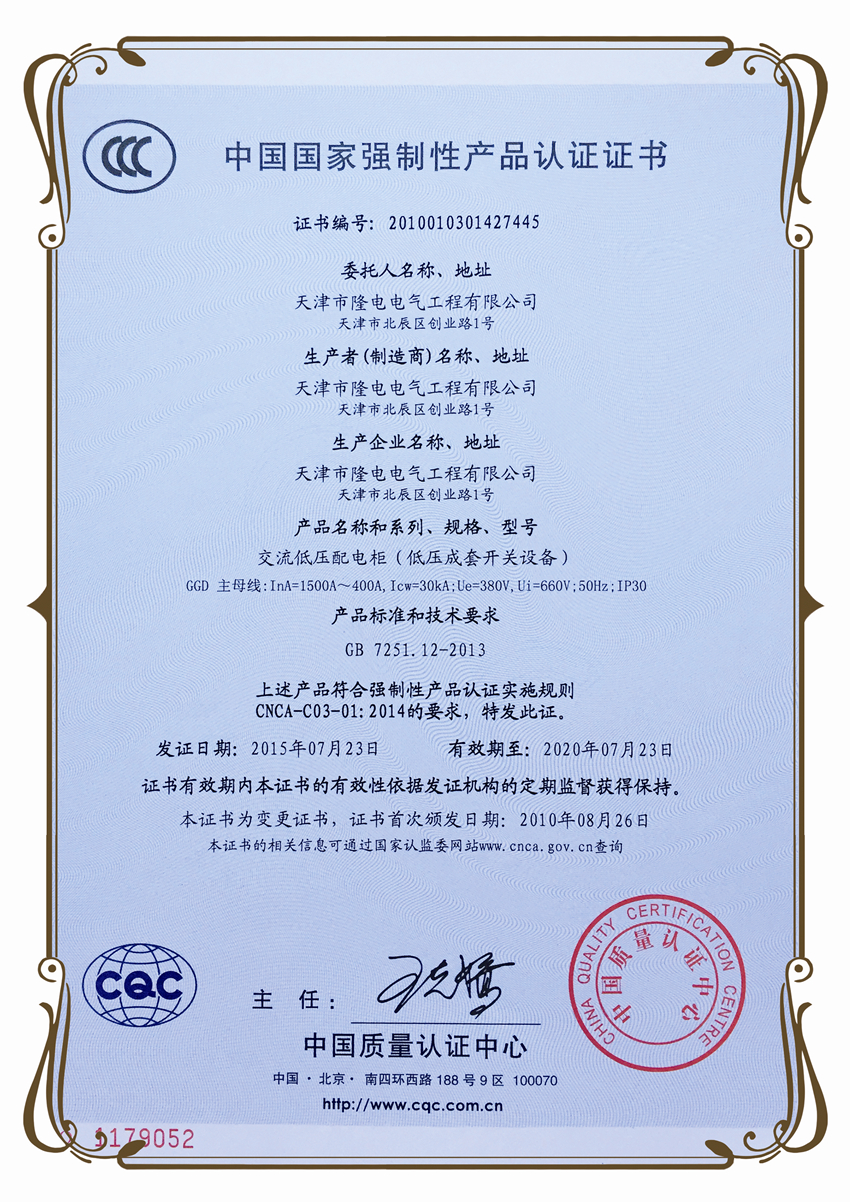

中國國家強制性產品認證證書

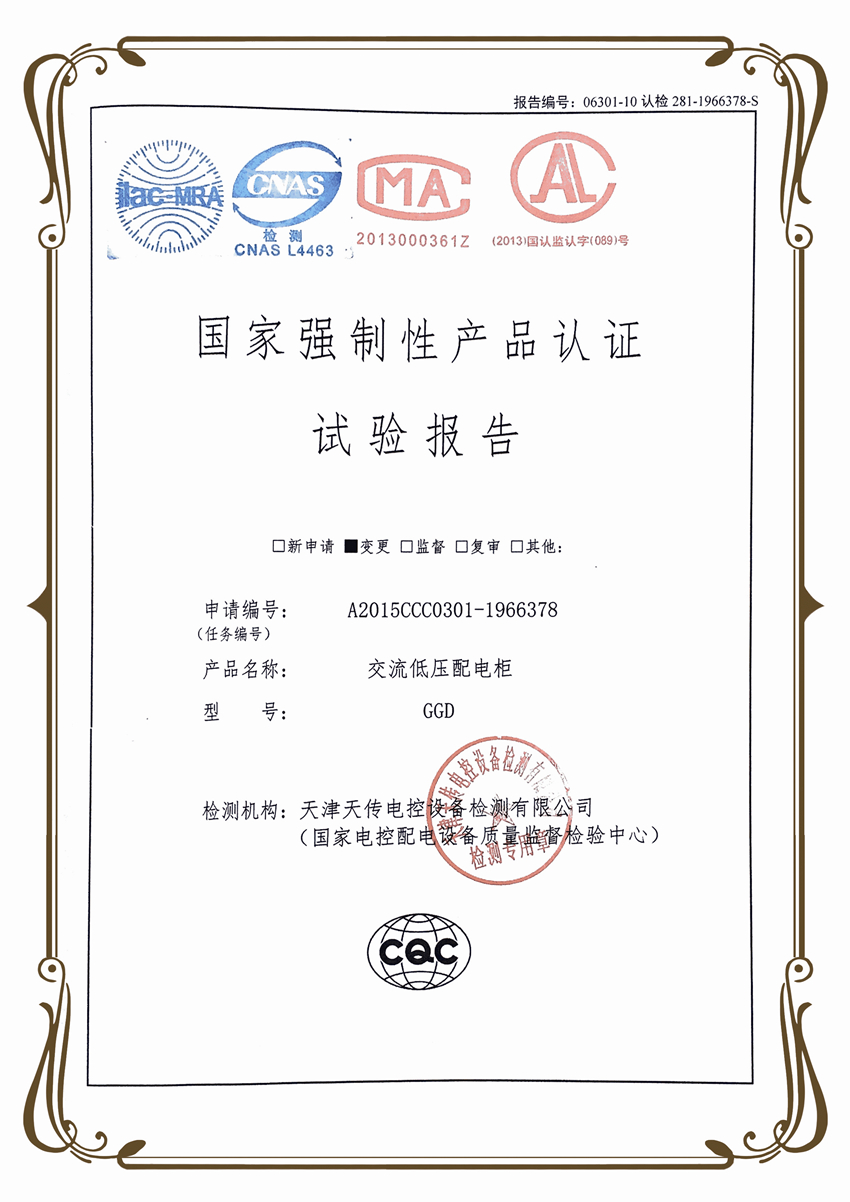

國家強制性產品認證試驗報告
